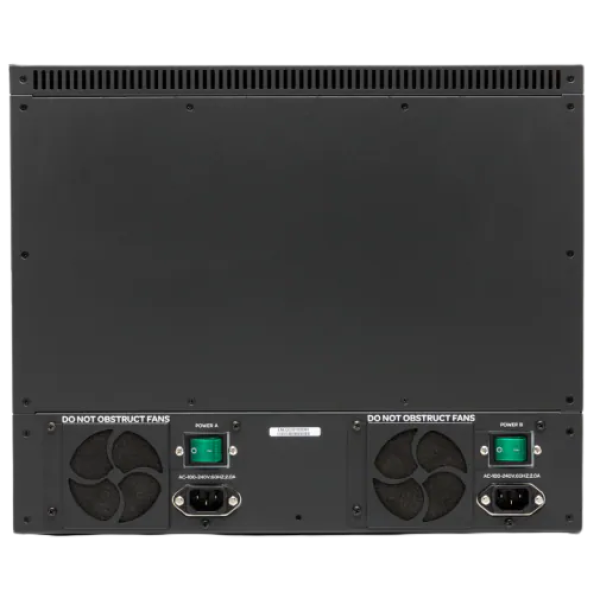

AVID VENUE | Stage 48 Stage Rack

0
P/N: S6L.AVID.0064
Manufacturer: AVID

Features

Μην διστάσετε να επικοινωνήσετε
μαζί μας στο T.: +30 210 9402526

DESCRIPTION

Stage 48

Supports up to 48 analog inputs and 24 analog outputs
Enable recording flexibility/redundancy with the 48-channel MADI split
Add analog I/O to any S6L system in a more affordable 8U rack
Mix and match Stage 48 with other I/O racks for more distribution flexibility

TECHNICAL DATA

SPECIFICATIONS
Technical specifications	Maximum I/O : 48 analog input channels and 24 analog output channels @ 96 kHz with one Stage 48 rack I/O card slots : n/a Sample rates : 96 kHz Ethernet AVB ports : 2, selectable as etherCON (copper) or SFP (fiber), with redundant ring topology; supports Luminex GigaCore 26i and GigaCore 10 AVB switches for redundant star configuration Maximum cable length : Copper: 100 meters (328 feet); Fiber: 500 meters (1,640.4 feet) MADI : Dual MADI output offers direct split of all 48 inputs Headphone confidence monitor : n/a Word Clock I/O : n/a Power supply : Dual redundant internal PSUs Rack spaces : 8U Dimensions (H x W x D) : 14 x 16.9 x 22.4 inches (355 x 430 x 568 mm) Weight : 80.2 lbs (36.4 kg) The specifications listed above are provided for informational purposes only and subject to change without notice. * Option cards are available as separate purchases and not included with core systems. ** When connected to Avid VENUE \| S6L—operates at 48 kHz when connected to Avid VENUE \| S3L-X.

SPECIFICATIONS

Technical specifications

Maximum I/O : 48 analog input channels and 24 analog output channels @ 96 kHz with one Stage 48 rack

I/O card slots : n/a

Sample rates : 96 kHz

Ethernet AVB ports : 2, selectable as etherCON (copper) or SFP (fiber), with redundant ring topology; supports Luminex GigaCore 26i and GigaCore 10 AVB switches for redundant star configuration

Maximum cable length : Copper: 100 meters (328 feet); Fiber: 500 meters (1,640.4 feet)

MADI : Dual MADI output offers direct split of all 48 inputs

Headphone confidence monitor : n/a

Word Clock I/O : n/a

Power supply : Dual redundant internal PSUs

Rack spaces : 8U

Dimensions (H x W x D) : 14 x 16.9 x 22.4 inches (355 x 430 x 568 mm)

Weight : 80.2 lbs (36.4 kg)

The specifications listed above are provided for informational purposes only and subject to change without notice.

* Option cards are available as separate purchases and not included with core systems.

** When connected to Avid VENUE | S6L—operates at 48 kHz when connected to Avid VENUE | S3L-X.
