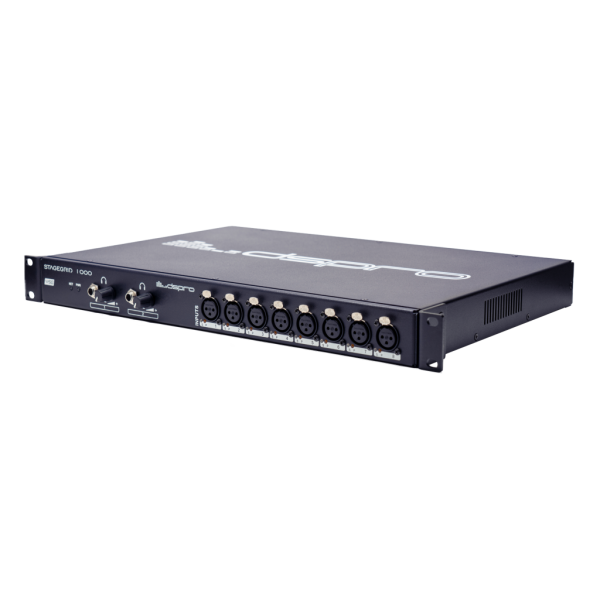

WAVES STAGEGRID 1000
Μην διστάσετε να επικοινωνήσετεμαζί μας στο T.: +30 210 9402526
| SPECIFICATIONS | |
| Technical specifications | General 8 Analog mic/line Inputs 4 Analog line outputs 1 Stereo AES / EBU Digital input 1 Stereo AES / EBU Digital output Configurable Sample Rate of 44.1, 48, 88.2 and 96kHz Two headphone outputs A SoundGrid Ethernet port Analog Inputs Impedance: 2.86 kOhms Gain range: -4 dB to 60 dB Max input level: 28 dBu (-4 dB gain) Dynamic range: 115 dB (-60 dBFS, 20 dB gain, 1 kHz, A-weighted) THD: 0,002 % (-1 dBFS, 20 dB gain, 1 kHz, A-weighted) Equivalent input noise: -128 dBu (60 dB gain, A-weighted, 150 ohms) Frequency response: +/- 0.1 dB (20 Hz to 40 kHz at 96 kHz sampling rate) Phase Shift: <10° at 20 Khz Analog Outputs Output impedance: 50 ohms Max output Level (0dBFS): 24 dBu Dynamic range: 115 dB (-60 dBFS, 1 kHz, A-weighted) THD: 0,002 % (-1 dBFS, 20 dB gain, 1 kHz, A-weighted) Frequency response: +/- 0.1 dB (20 to 40 kHz at 96 kHz) Phase shift: <5° at 20 Khz AES/EBU IN/OUT Standard: AES3 (2009) Sample rates: 44.1, 48, 88.2 and 96 kHz Impedance: 110 ohms Headphones Output Power: 150 mW per channel on 16 ohms Dynamic range: 100 dB SoundGrid Interface: Gigabit Ethernet Connector: Neutrik EtherCON Power supply Voltage: 110 or 240 VAC Frequency: 50 Hz or 60 Hz Power: 60 W Environmental specifications Operating temperature: 0°C to 40°C Relative humidity: Up to 90% non-condensing Dimensions Height: 44 mm / 1.75 in (1RU) Width: 430 mm / 19.92 in (for 19” rack) Depth: 300 mm / 11.81 in (not including connectors) Weight: 2.89 Kg |
