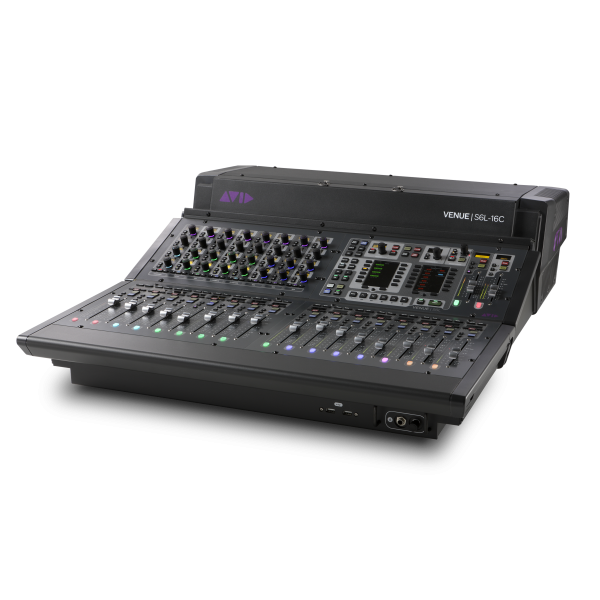

AVID VENUE S6L-16C

0
P/N: S6L.AVID.0036
Manufacturer: AVID

Features VENUE SL6-16C CONTROL SURFACE

Μην διστάσετε να επικοινωνήσετε
μαζί μας στο T.: +30 210 9402526

DESCRIPTION

VENUE | S6L-16C

Get the easiest entry into VENUE | S6L with a 16-fader control surface that’s ultra-portable, but expansive in its capabilities. It’s ideal for corporate events and live applications where space is tight.

16 channel faders across 1 Channel Fader Module, plus 2 assignable faders in the Master Live Module
32 assignable channel knobs (encoders) across 1 Channel Knob Module
1 Master Live Module (provides control over global system parameters, such as channel banking, snapshots, and monitoring)

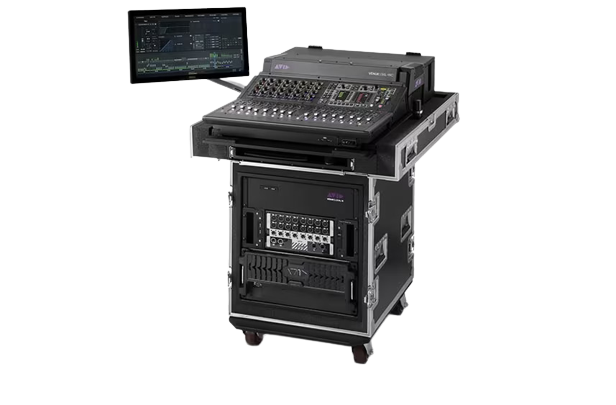

Local analog I/O and ancillary I/O, including ECx for remote control and DVI for connecting an external monitor (sold separately) for VENUE software display

TECHNICAL DATA

SPECIFICATIONS
Technical specifications	12-inch daylight-visible touchscreens : none (requires user-provided external touchscreen) Faders : 16 + 2 Knob Modules with high-resolution OLEDs and tri-color function indicators : 32 assignable knobs across 1 Channel Knob Module Master Live Module : Graphic TFTs with soft buttons; Touch and Turn assignable encoder; 2 assignable faders; monitoring, layout and snapshot controls; transport controls and function buttons Metering : 30-segment meters per channel, with pre- and post-fade metering options; Nominal indicator, Expander/Gate status and Compressor/Limiter gain reduction meters Analog inputs : 1 XLR mic/line input* Analog outputs : 2 XLR outputs* Digital inputs : none* Digital outputs : none* Headphone outputs : 1 1/4" TRS stereo headphone jack Ancillary I/O : DVI-D video out, 5 USB 2.0 (2 rear, 2 front, 1 internal), ECx Ethernet port for wired/wireless remote control, GPIO (8 in/8 out), 2 footswitch, Linear Time Code input, MIDI I/O Ethernet AVB ports : 2 etherCON (copper), 2 selectable as etherCON (copper) or SFP (fiber); redundant ring topology; supports Luminex GigaCore 26i and GigaCore 10 AVB switches for redundant star configuration Power supply : Dual redundant, internal** Height (front, rear) : 3.6, 8 inches (91, 205 mm) Width : 26.4 inches (671 mm) Depth : Weight : 72 lbs (33 kg) Local 16 Rack can supply additional local I/O * S6L-24C and 16C power supplies are not compatible/swappable with S6L-48D, 32D, and 24D control surface power supplies, or with E6L-192 and 144 engine power supplies

SPECIFICATIONS

Technical specifications

12-inch daylight-visible touchscreens : none (requires user-provided external touchscreen)

Faders : 16 + 2

Knob Modules with high-resolution OLEDs and tri-color function indicators : 32 assignable knobs across 1 Channel Knob Module

Master Live Module : Graphic TFTs with soft buttons; Touch and Turn assignable encoder; 2 assignable faders; monitoring, layout and snapshot controls; transport controls and function buttons

Metering : 30-segment meters per channel, with pre- and post-fade metering options; Nominal indicator, Expander/Gate status and Compressor/Limiter gain reduction meters

Analog inputs : 1 XLR mic/line input*

Analog outputs : 2 XLR outputs*

Digital inputs : none*

Digital outputs : none*

Headphone outputs : 1 1/4" TRS stereo headphone jack

Ancillary I/O : DVI-D video out, 5 USB 2.0 (2 rear, 2 front, 1 internal), ECx Ethernet port for wired/wireless remote control, GPIO (8 in/8 out), 2 footswitch, Linear Time Code input, MIDI I/O

Ethernet AVB ports : 2 etherCON (copper), 2 selectable as etherCON (copper) or SFP (fiber); redundant ring topology; supports Luminex GigaCore 26i and GigaCore 10 AVB switches for redundant star configuration

Power supply : Dual redundant, internal**

Height (front, rear) : 3.6, 8 inches (91, 205 mm)

Width : 26.4 inches (671 mm)

Depth :

Weight : 72 lbs (33 kg)

*Local 16 Rack can supply additional local I/O

** S6L-24C and 16C power supplies are not compatible/swappable with S6L-48D, 32D, and 24D control surface power supplies, or with E6L-192 and 144 engine power supplies
