AVID VENUE | S6L-24D

AVAILABLE SOON
P/N: S6L.AVID.0008
Manufacturer: AVID

Features

Μην διστάσετε να επικοινωνήσετε
μαζί μας στο T.: +30 210 9402526

DESCRIPTION

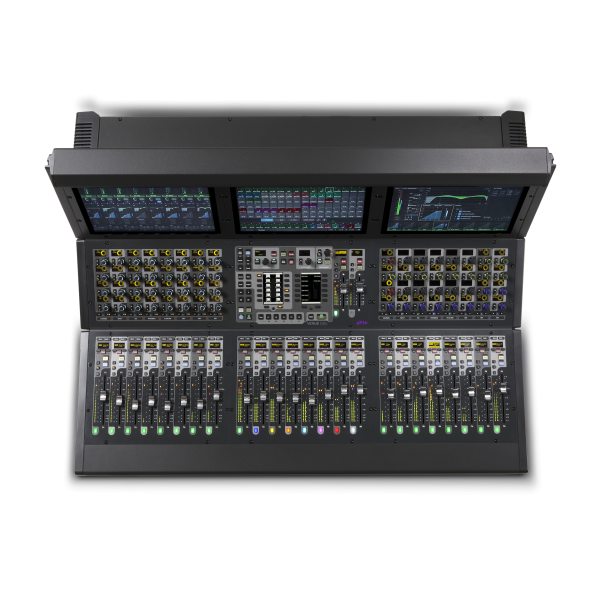

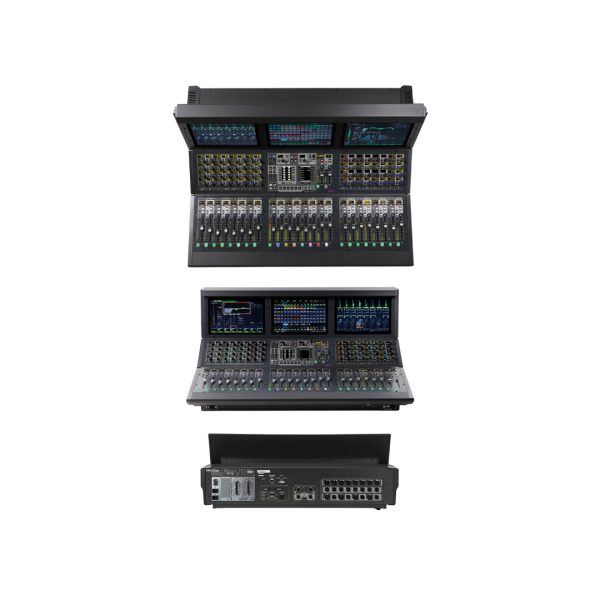

VENUE | S6L-24D

Get full hands-on control and extensive visual insight into your mix with a versatile control surface that packs powerful performance in a smaller footprint.

24 channel faders across 3 Channel Fader Modules, plus 2 assignable faders in the Master Live Module
64 assignable channel knobs (encoders) across 2 Channel Knob Modules
1 Master Touchscreen (central screen for quick navigation, parameter identification, and control)
1 Master Live Module (provides control over global system parameters, such as channel banking, snapshots, and monitoring)
2 Channel Touch Modules (touchscreen display provides access and control to parameters in Meters view and Channel view)
Local analog I/O, digital I/O, and ancillary I/O, including ECx for remote control and DVI for connecting an external monitor (sold separately) for VENUE software display

TECHNICAL DATA

SPECIFICATIONS
Technical specifications	12-inch daylight-visible touchscreens : 1 Master Touchscreen, 2 Channel Touch Modules Faders : 24 + 2 Knob Modules with high-resolution OLEDs and tri-color function indicators : 64 assignable knobs across 2 Channel Knob Modules Master Live Module : Graphic TFTs with soft buttons; Touch and Turn assignable encoder; 2 assignable faders; monitoring, layout and snapshot controls; transport controls and function buttons Metering : 30-segment meters per channel, with pre- and post-fade metering options; Nominal indicator, Expander/Gate status and Compressor/Limiter gain reduction meters Analog inputs : 8 XLR mic/line inputs with 48V and signal present LEDs Analog outputs : 8 XLR outputs with mute and signal present LEDs Digital inputs : 4 pairs of XLR stereo AES/EBU (8 channels total) Digital outputs : 4 pairs of XLR stereo AES/EBU (8 channels total) Headphone outputs : 2 independent 1/4" TRS stereo headphone jacks Ancillary I/O : DVI-D video out, 5 USB 2.0 (2 rear, 2 front, 1 internal), ECx Ethernet port for wired/wireless remote control, GPIO (8 in/8 out), 2 footswitch, Linear Time Code input, MIDI I/O Ethernet AVB ports : 2 etherCON (copper), 2 selectable as etherCON (copper) or SFP (fiber); redundant ring topology; supports Luminex GigaCore 26i and GigaCore 10 AVB switches for redundant star configuration Power supply : Dual redundant, internal hot-swappable PSUs Height (front, rear) : 3.6, 15.3 inches (91, 388 mm) Width : 38.9 inches (989 mm)) Depth : 31 inches (787 mm) Weight : 119 lbs (54 kg) Local 16 Rack can supply additional local I/O * S6L-24C and 16C power supplies are not compatible/swappable with S6L-48D, 32D, and 24D control surface power supplies, or with E6L-192 and 144 engine power supplies

SPECIFICATIONS

Technical specifications

12-inch daylight-visible touchscreens : 1 Master Touchscreen, 2 Channel Touch Modules

Faders : 24 + 2

Knob Modules with high-resolution OLEDs and tri-color function indicators : 64 assignable knobs across 2 Channel Knob Modules

Master Live Module : Graphic TFTs with soft buttons; Touch and Turn assignable encoder; 2 assignable faders; monitoring, layout and snapshot controls; transport controls and function buttons

Metering : 30-segment meters per channel, with pre- and post-fade metering options; Nominal indicator, Expander/Gate status and Compressor/Limiter gain reduction meters

Analog inputs : 8 XLR mic/line inputs with 48V and signal present LEDs

Analog outputs : 8 XLR outputs with mute and signal present LEDs

Digital inputs : 4 pairs of XLR stereo AES/EBU (8 channels total)

Digital outputs : 4 pairs of XLR stereo AES/EBU (8 channels total)

Headphone outputs : 2 independent 1/4" TRS stereo headphone jacks

Ancillary I/O : DVI-D video out, 5 USB 2.0 (2 rear, 2 front, 1 internal), ECx Ethernet port for wired/wireless remote control, GPIO (8 in/8 out), 2 footswitch, Linear Time Code input, MIDI I/O

Ethernet AVB ports : 2 etherCON (copper), 2 selectable as etherCON (copper) or SFP (fiber); redundant ring topology; supports Luminex GigaCore 26i and GigaCore 10 AVB switches for redundant star configuration

Power supply : Dual redundant, internal hot-swappable PSUs

Height (front, rear) : 3.6, 15.3 inches (91, 388 mm)

Width : 38.9 inches (989 mm))

Depth : 31 inches (787 mm)

Weight : 119 lbs (54 kg)

*Local 16 Rack can supply additional local I/O
** S6L-24C and 16C power supplies are not compatible/swappable with S6L-48D, 32D, and 24D control surface power supplies, or with E6L-192 and 144 engine power supplies
