HH TNA-1200S
Μην διστάσετε να επικοινωνήσετεμαζί μας στο T.: +30 210 9402526

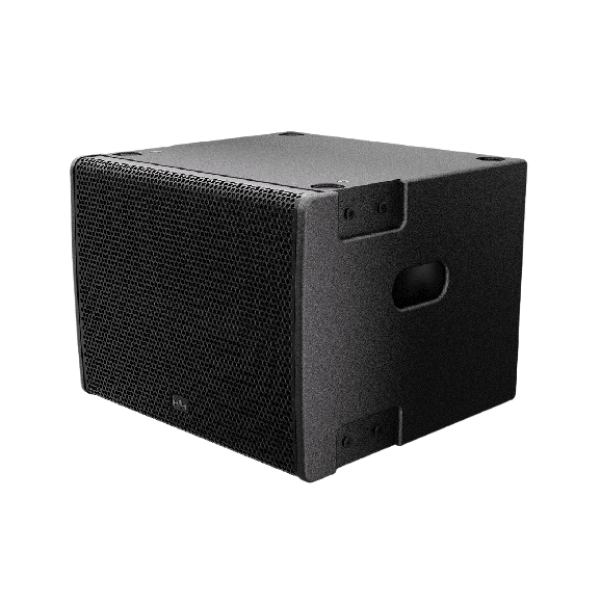

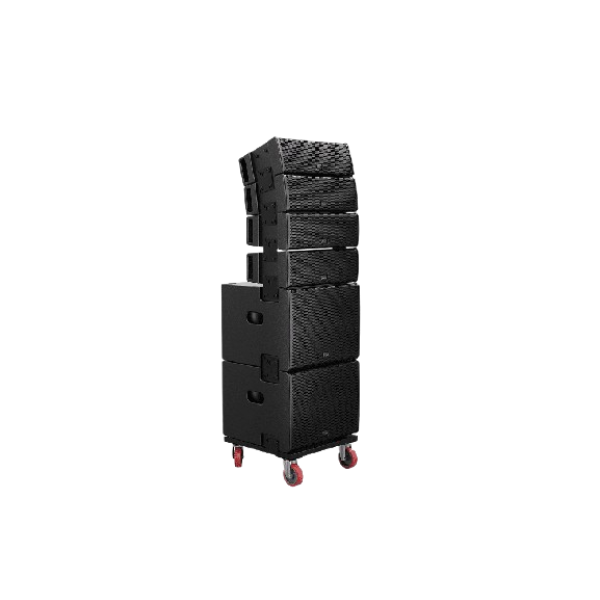

The TNA-1200s passive line array subwoofer features a high power 12-inch low frequency woofer with exceptional high output. Equipped with integrated rigging hardware, the TNA-1200s can be installed quickly and easily. The TNA-1200s delivers a max SPL of 125dB with a wide frequency range of 35hz > 2kHz. When combined with the TNA-2051, the TNA system provides a high specification flown installation system or ground stacked point source solution. The perfect live sound system.
| SPECIFICATIONS | |
| Technical specifications | Frequency Response (-10) 35Hz - 2kHz Frequency Response (-3) 40Hz - 500Hz Power 300W AES, 1200W Peak Sensitivity (1W/1M) 95dB Max SPL (1M) (Peak) 126dB Nominal System Impedance 8 Ohm Input Connector NL4 ±1 Twist Lock Connector Link Connector NL4 ±1 Twist Lock Connector LF Driver 1 x 12 Inch High sensitivity HH designed driver Cabinet 15mm plywood cabinet Finish Painted Black (White finish optional, subject to MOQ) Mounting Bracket TNA-BRK1 for suspended mounting (available separately) Mounting Points M8 fixings for optional TNA-BRK1 flying bracket assembly or TNA-DF1 dolly frame assembly (available separately) Grille 1.5mm Thickness Steel, Hexagonal mesh, acoustic foam lined Dimensions 365 x 460 x 470mm, 14.4" x 18.1" x 18.5" Unit Weight 18.8 Kg, 41.4 lbs Carton Dimensions (Hwd) 535 x 430 x 530mm, 21.1" x 16.9" x 20.9" Packed Weight 22.5Kg, 49.6 lbs |
