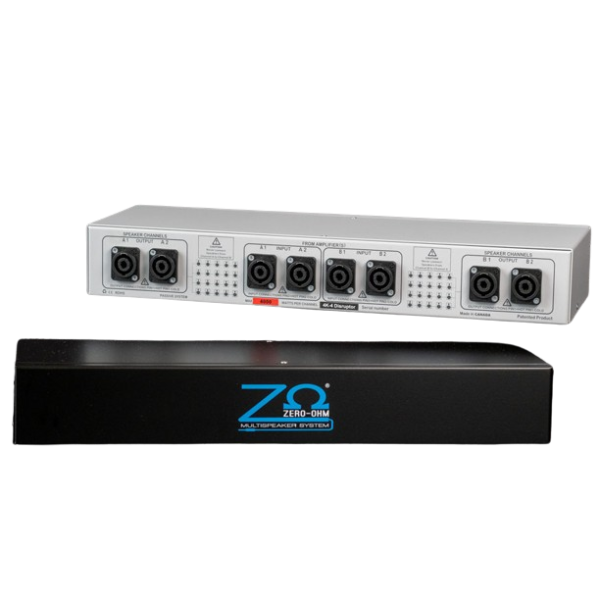

ZERO-OHM 2K-2 Renegade

0
P/N: ACC.ZERO.202
Manufacturer: Zero-Ohm

Features

2K Renegade Series 2K-2 / 2000W 2 Channel system

Μην διστάσετε να επικοινωνήσετε
μαζί μας στο T.: +30 210 9402526

DESCRIPTION

The Disruptor Series changes the rules. Connect 20-50 speakers or more in parallel without transformers.

ZERO-OHM System is a passive device that interconnects between any amplifier and multiple loudspeakers without the concerns of amplifier speaker loads, impedance and extremely long cable runs.

This Patented Design eliminates the need for 70V-100V transformer products.

Multiple loudspeakers can be wired in a parallel connection to impedances below one (1) Ohm.

TECHNICAL DATA

SPECIFICATIONS
Technical specifications	Zero (0) Ohm functionality No Transformers required Multiple loudspeakers can be connected in parallel Any Speaker impedance can be used: 2/4/8/16 Ohm Uniform power distribution over long distance cable runs Full range frequency response Identical Output Phase relationship with all Power Amplifiers Frequency Response 20Hz - 20kHz Frequency Range 20Hz - 20kHz Made in Canada Input/Output Connector Neutrik NL4 Input Pin-Out Pin 2+ Pin 2- Output Pin-Out Pin 1+ Pin 1- Min. Output Impedance 0.1 Ohms Max. Power Handling 2000W per channel Height 65.1mm Width 438.1 mm / 479.4mm with Rack Ears Depth 149.2 mm Weight 3.2 kg Shipping Weight 4kg (Including Packaging)

SPECIFICATIONS

Technical specifications

Zero (0) Ohm functionality
No Transformers required
Multiple loudspeakers can be connected in parallel
Any Speaker impedance can be used: 2/4/8/16 Ohm
Uniform power distribution over long distance cable runs
Full range frequency response
Identical Output Phase relationship with all Power Amplifiers
Frequency Response 20Hz - 20kHz Frequency Range 20Hz - 20kHz
Made in Canada
Input/Output Connector Neutrik NL4 Input Pin-Out Pin 2+ Pin 2- Output Pin-Out Pin 1+ Pin 1- Min.
Output Impedance 0.1 Ohms Max.
Power Handling 2000W per channel
Height 65.1mm Width 438.1 mm / 479.4mm with Rack Ears Depth 149.2 mm Weight 3.2 kg Shipping Weight 4kg (Including Packaging)
