Lifting systems > Lifting Towers >

FENIX MEGARA 100

0
P/N: LIFTI.FEN.001
Manufacturer: Fenix
Features

Telescopic lifting tower.

Maximum height: 4m

Height folded: 1,66m

icon Μην διστάσετε να επικοινωνήσετε
μαζί μας στο
T.: +30 210 9402526
DESCRIPTION

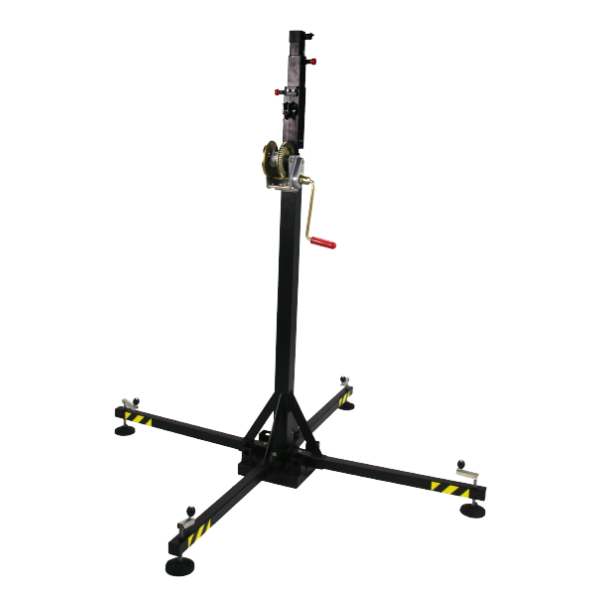

 MEGARA 100

Telescopic lifting tower with removable legs.


Uses:
For rising sound systems, lighting and truss.


Features:
- Easy handling and lightweight.
- Made of steel.
- Available colour: Black.
- Compatible with many accessories.






 Leg base safety lock: The automatic leg locking system allows the outriggers to anchor easily in the correct place, doing away with old and uncomfortable safety pin rings.











 Polyamide plates: This raw material offers more resistance than metal and it is wear free. The Polyamide plates can rest against any surface without damaging it, carpet, tiles, etc.








  Safety pins: Safety pins stop the load from falling down. You can select different tower heights safely by raising the bars equally, this distributes the load evenly from the main bar to the last bar. Ultimately this prolongs

the towers lifetime and increases its stability.









  Winch: Our winches are manufactured by industry leading companies. They are resistant and durable as well as oversized for additional safety and better cable pull.









  Reinforced base: All our towers use a reinforced iron base that supports heavy loads and high heights.









  Circular bubble level: The location of the level at the base helps you stabilise the tower easily and accurately.









Pulleys and pulley-holders: They are made of reinforced steel.





TECHNICAL DATA
SPECIFICATIONS
Technical specifications


Maximum height: 4m

Height folded: 1,66m

Maximum load: 100kg

Minimum charge: 25kg

Material: Galvanized steel under EN 10305-5.

Workspace: 1,15 x 1,15m

Closed base area: 0,36 x 0,36m

Weight: 33kg

Winch: AL-KO Type 450 Compact 450kg

Cable: Galvanized steel under EN 12385-4.

Maximum cable load: 958kg

Cable twisting resistance : 1.770 N/mm²

Cable diameter: 4mm

Cable composition: 7x19+0

Security system: External trigger in sections

Leg attachment: Safety pins

Bubble level: to vertically adjust the tower.


DOWNLOADS
Megara-100_data(en).pdf icon
Megara-100_manual(en).pdf icon
