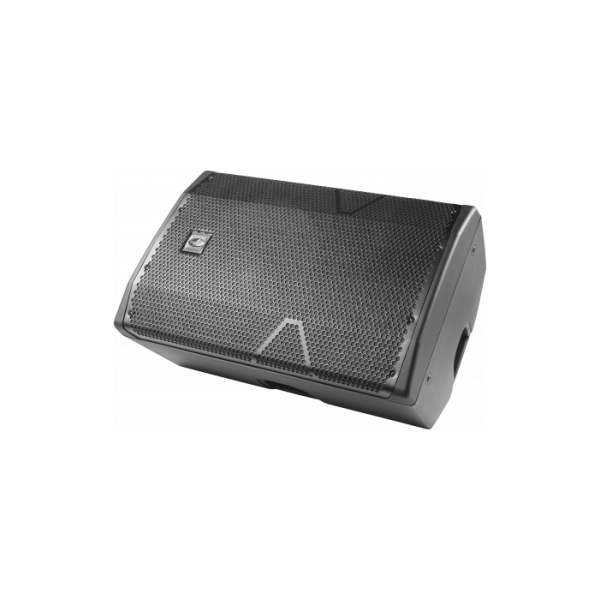

DAS ALTEA-712

0
P/N: SPEAK.DAS.197
Manufacturer: DAS
Features

Hi-power passive 2-way system
2000 W peak power handling
12″ loudspeaker + M-28 compression driver
Wide 90º coverage that fills the room
Lightweight polypropylene enclosure
Ergonomic handles and floor

icon Μην διστάσετε να επικοινωνήσετε
μαζί μας στο T.: +30 210 9402526
DESCRIPTION

The ALTEA-712 passive system allows users to choose the powering option they prefer and is designed for use with external amplification and outboard DSP. This system benefits from the high-performance transducers include the DAS 12F loudspeaker, which provides accurate low frequency reproduction with a deep, powerful bass.

High frequencies are handled by the brilliant M-28 FEM optimized compression driver with 1″ exit providing exceptional performance and smooth reproduction.

TECHNICAL DATA
SPECIFICATIONS
Technical specifications


Performance
Frequency Range (-10 dB)65 Hz – 20 kHz
Horizontal Coverage (-6 dB)90º
Vertical Coverage60º
Nominal Impedance8 ohms
RMS Power Handling500 W
Peak Power Handling2000 W
On-axis Sensitivity 1W/1 m98 dB SPL
Maximum Peak SPL at 1 m131 dB
Recommended AmplifierPA-1500
Recommended ProcessorDSP-226

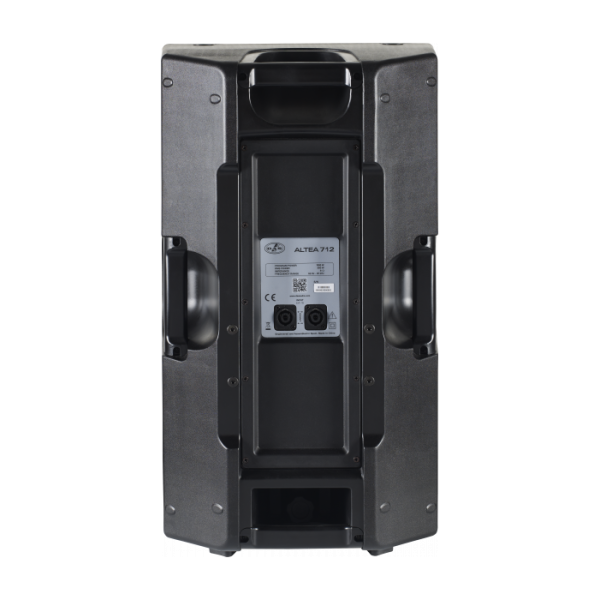

Connectors
Audio Input Connector1 x speakON NL4
Audio Output Connector1 x speakON NL4
Enclosure
Enclosure ConstructionPolypropylene
Enclosure GeometryTrapezoidal
RiggingM8 Rigging Points
ColorBlack
Depth350 mm (13,8 in)
Dimensions ( H x W x D )655 x 380 x 350 mm
25,8 x 15,0 x 13,8 in
Net Weight16,5 kg ( 36,4 lb )
Components
LF Driver12F
HF DriverM-28
Shipping
Carton Dimensions ( H x W x D )750 x 450 x 415 mm
29,5 x 17,7 x 16,3 in
Shipping Weight19,5 kg ( 43,0 lb )
DOWNLOADS
CAT_DAS_2020_FULL_LINE_7_2.pdf icon
CAT_ALTEA_03_EN.pdf icon
UM_AL2_01_EN.pdf icon
Data Sheet ALTEA712_00 icon
Line Drawing CAD_2D_AL712.dwg icon
Line Drawing LD_2D_AL712.svg icon
