AYRTON VELOCE WASH
Μην διστάσετε να επικοινωνήσετεμαζί μας στο T.: +30 210 9402526

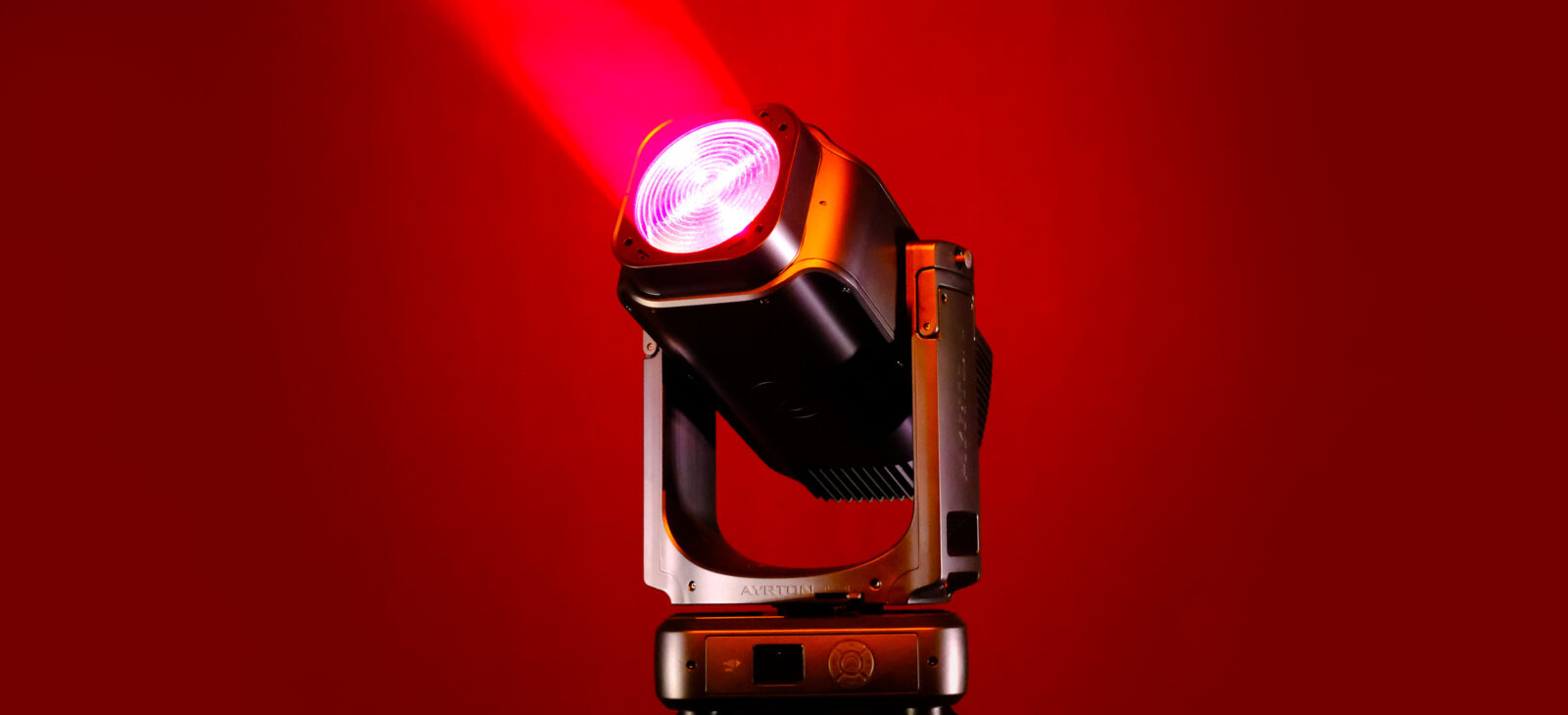

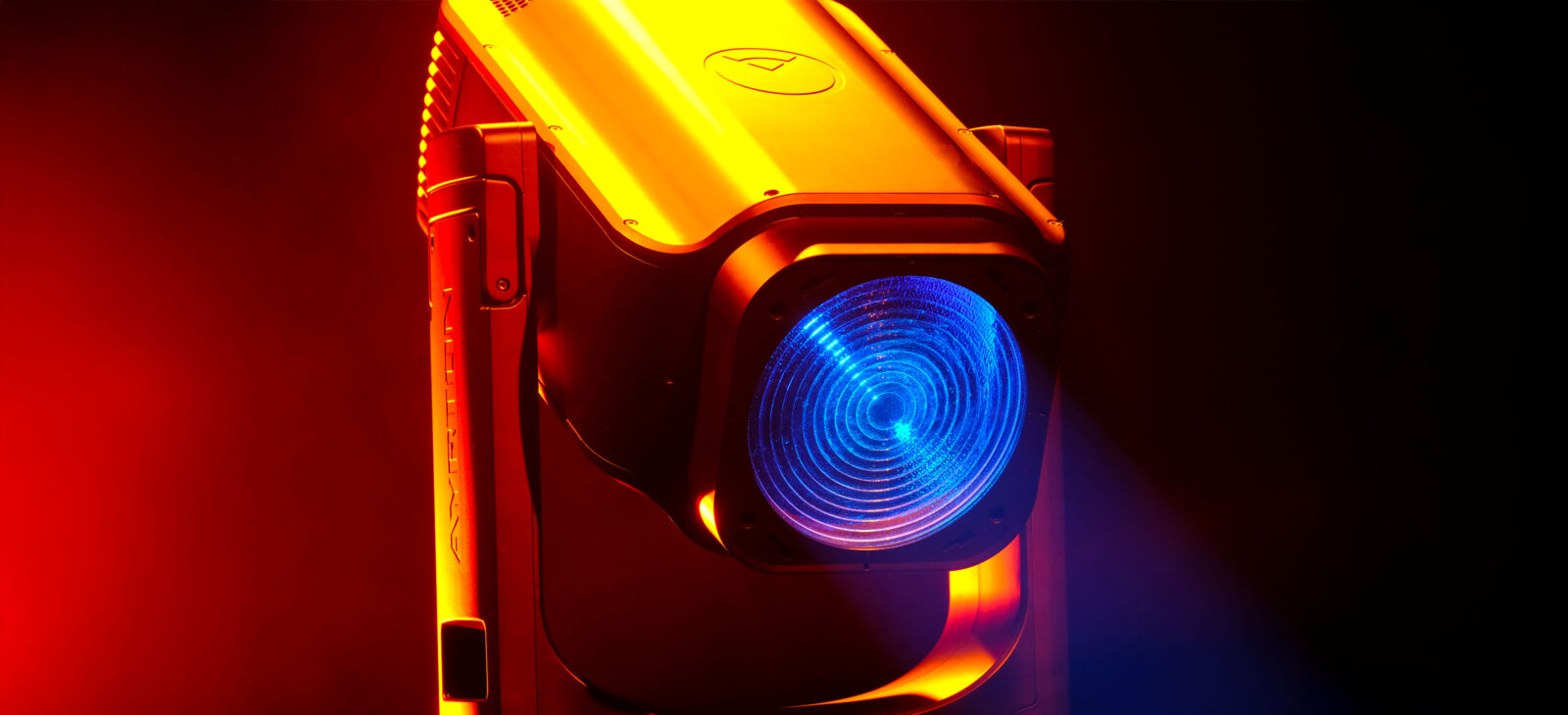

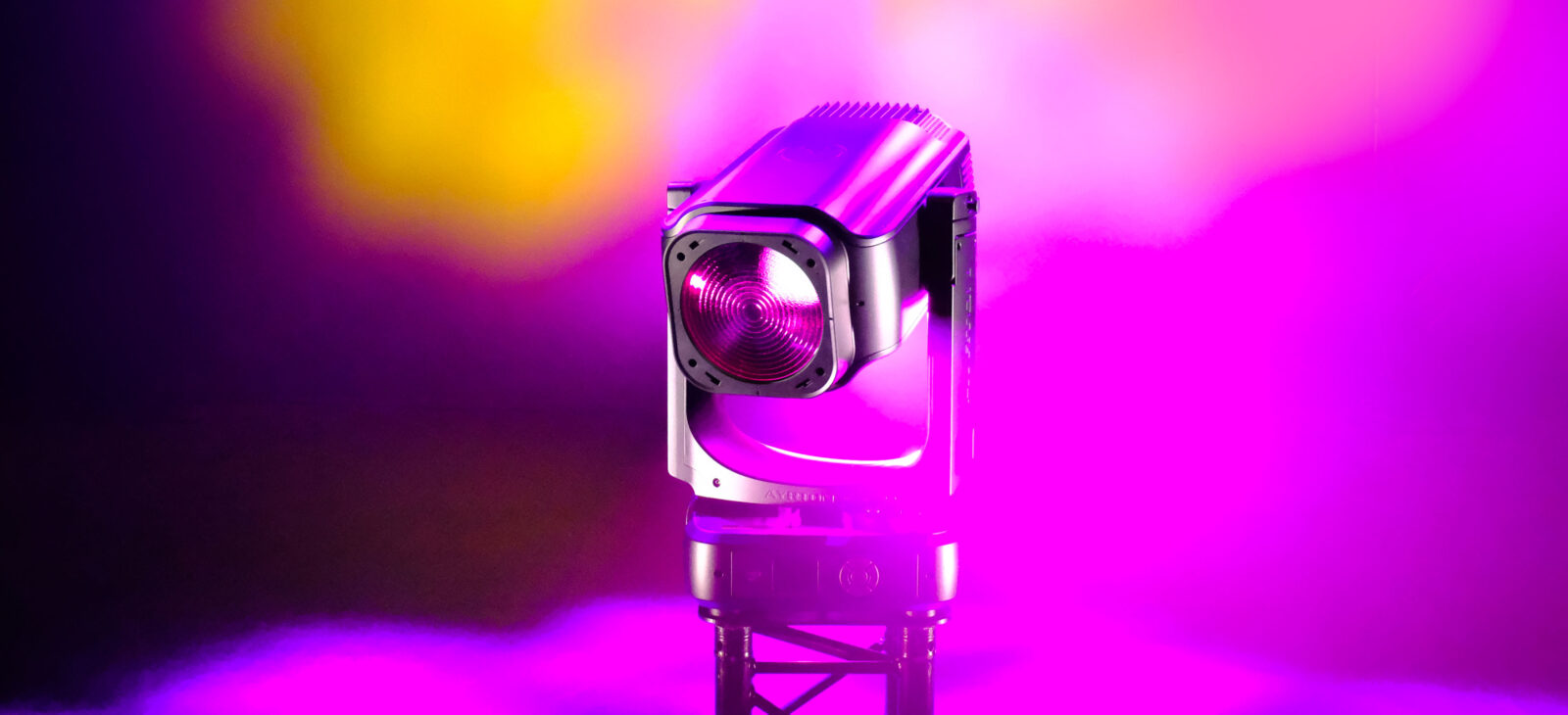

Following the launch and immediate success of the all-new Veloce Profile, Ayrton is proud to unveil Veloce Wash, the fourth luminaire in the “Ultimate” series, boasting a cutting-edge design and breathtaking performance.
Built on the advanced principle of perfect scalability, this ultra-compact luminaire pushes the boundaries of integration with a sealed 850 W high-efficiency LED module, calibrated at 6500 K, delivering a powerful 40,000-lumen output. With an optimal black body positioning, it ensures perfect light neutrality. Like all Ultimate series luminaires, Veloce Wash is a versatile tool designed to perform in all conditions—indoors, outdoors, and even in coastal environments. The use of lightweight aluminum components significantly reduces weight, achieving the best weight-to-power ratio on the market, without resorting to costly or unstable special alloys. Weighing just 39 kg, Veloce Wash is the lightest luminaire in its category. For greater creative freedom, it features continuous, unlimited pan & tilt rotation. Equipped with a 190 mm front lens, its proprietary 12-lens optical system delivers a 14:1 zoom ratio, covering a versatile range from 4 ° to 57 °.
Veloce Wash integrates an ultra-fast CMY progressive colour-mixing system with a gradient disk that provides a continuous filtering surface, ensuring perfect homogeneity.
This innovative system enhances colour brightness and renders pastel shades with exceptional accuracy. A progressive extended CTO enables precise colour temperature adjustment from 2700 K to 6500 K, complemented by a 7-position colour wheel equipped with specialty filters for unparalleled creative potential. For greater flexibility, Veloce Wash features adjustable CRI tuning from 70 to 86. The framing system allows for precise shutter blade positioning across 100% of the surface, with ±90 ° rotation. A 15-blade iris diaphragm, with an adjustable aperture range from 15% to 100%, optimises the beam in Beam mode. The effects section includes a 6-position rotating glass gobo wheel, a multi-layer CMY+RGB animation wheel, a beam ovaliser, and an indexable rotating scrim filter. The all-new progressive frost system provides precise control over diffusion levels, offering seamless adjustment to match any creative need. Veloce Wash is a one-of-a-kind luminaire, balancing power, creativity, precision, and subtlety. A truly exceptional fixture with no equivalent on the market.
| Luminous Flux | Variable CRI | Zoom Aperture | Front Lens | IP Rating | Weight |
| 40,000 lm | 70 to 86 | 4 ° to 57 ° | 190 mm | IP65 | 39 kg |
| SPECIFICATIONS | |
| Technical specifications | OPTICS 12-element 14:1 zoom high-resolution optic system Zoom aperture: 4 ° to 57 ° Fast motorised linear zoom Tempered anti-reflective coated lenses 190 mm frontal Fresnel lens LIGHT SOURCE 58,000 lumens white light engine Total luminaire output: up to 40,000 lumens (integrating sphere measurement, Stage Fan mode) Colour temperature output: 6500 K Variable CRI: 70 to 86 Rated life (L70): up to 40,000 hours Flicker-free source management suitable for TV applications and all video-recorded events MOVEMENT Extremely accurate positioning Moving-head operated via either 8- or 16-bit resolution High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement Pan and tilt automatic repositioning Moving-head range: infinite pan and tilt rotation COLOURS Sophisticated colour mixing system providing CMY color mixing Variable CTO colour temperature correction Variable CRI improvement filter Fixed colour wheel with seven complementary colours GOBOS Indexable rotating gobo wheel with six high precision glass gobos and a scrim filter Progressive scrim filter to reduce light intensity at shallow projection angles Adjustable-speed rotating gobo in both directions Gobo diameter: 30 mm Image diameter: 18 mm Gobo thickness: 1.1 mm FRAMING SYSTEM 4 individually positionable barndoors on a 100% surface area in all positions Rotation of the barndoors module: +/- 90 ° IRIS DIAPHRAGM Fast iris diaphragm with adjustable dynamic effects Iris range: 15% to 100% open FROST 0% to 100% variable linear frost EFFECTS Focusable CMY & RGB graphic animation effect-wheel with continuous rotation in both directions Beam ovalising filter, indexable and rotatable DIMMER / STROBE Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation Strobe effect, with speed adjustment from 1 to 25 flashes per second SOFTWARE FEATURES Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller Information menu including hour counter, temperature, software version HARDWARE FEATURES Graphic LCD display for addressing and special functions settings, with flip function 5 menu buttons to set functions Excess temperature protection Integrated wireless CRMX TiMo RDM receiver from LumenRadio IP65 XLR 5 pin male and female connectors for DMX connection IP65 RJ45 IN / OUT connectors for ArtNet connection IP65 PowerCON TRUE1 male connectors for power connection CONTROL DMX 512 protocol, through DMX cable or a wireless system DMX-RDM compatible Stand-alone mode and Master/Slave modes ArtNet & sACN protocol through Ethernet cable Local control panel, with IP65 LCD display 60 DMX channels footprint POWER SUPPLY Electronic supply with active PFC 100 to 240 Volts – 50/60Hz Power: 1300 W maximum COOLING SYSTEM Advanced liquid cooling system IP68 Self-adjusting variable speed fans for quiet operation (Auto mode) Selectable ventilation user modes including Super Silent Mode Safety protection against excess temperature HOUSING Moving-head skeleton made of aluminium and steel metal plates Base in die-cast composite alloy Heatsinks in aluminium and copper Moulded covers in self-extinguishing fire retardant ABS PC (V0 class) Four-side handles for transportation Four heavy-duty feet for better stability IP65 protection rating Exterior finish: black (Carbon) INSTALLATION Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire Safety cable attachment point OPERATING PARAMETERS Operating positions: all (device on floor or fixed to a support) Maximum permitted ambient temperature (Ta max): 45 °C (113 °F) Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F) Minimum usage distance: 4 m (13.123 ft) COMPLIANCE EU (EMC & LVD): EMC Directive 2014/30/EU LVD Directive 2014/35/EU US (Safety & EMC) UL 1573 FCC Part 15, Subpart B:2018 SIZE Product: 404 x 757 x 366 mm (l x h x d) Flight-case foam: 500 x 640 x 680 mm (l x h x d) WEIGHT Product: 39 kg PRODUCT CODES 012541: VELOCE WASH – ULTIMATE IP65 6 SERIES |
